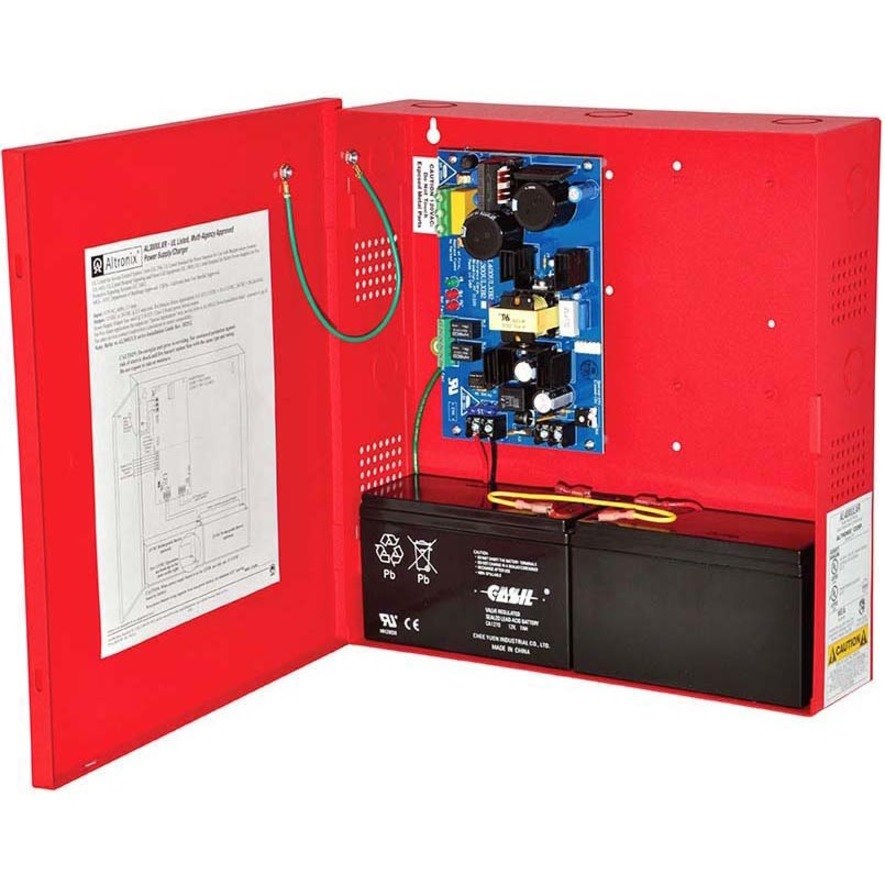

Model AL300ULXR power supply converts a 115VAC 60Hz input, to a 2.5 amp of continuous supply current @ 12VDC or 24VDC non-power limited output.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage Type
- AC
- Input Voltage
- 115 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Input Current
- 1.45 A @ 110V
- Controls/Indicators
- Status Indicators
AC input and DC output LED indicators
- Physical Characteristics
- Color Family
- Red
- Product Color
- Red
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 8.20 lb
- Miscellaneous
- Additional Information
- Class 2 Rated power limited output
- Filtered and electronically regulated outputs
- Short circuit and thermal overload protection
- Built-in charger for sealed lead acid or gel type battery backup
- Maximum charge current 0.7 amp
- Zero voltage drop upon transfer to battery backup
- AC fail supervision
- Low battery and battery presence supervision
- Red enclosure
- Accommodates up to two (2) 12VDC/7AH batteries
- Certifications & Standards
- UL Listed for:
- Access Control Systems (UL294)
- Burglar Alarms Systems (UL603)
- Hospital Signaling and Nurse Call Equipment (UL1069)
- Power Supplies for Fire Protective Signaling Systems (UL1481)
- cUL Listed:
- CSA Standard C22.2 No.205-M1983
- Signal Equipment
- CSFM - California State Fire Marshal
- MEA - NYC Department of Buildings
- NFPA 72
- Country of Origin
- United States
