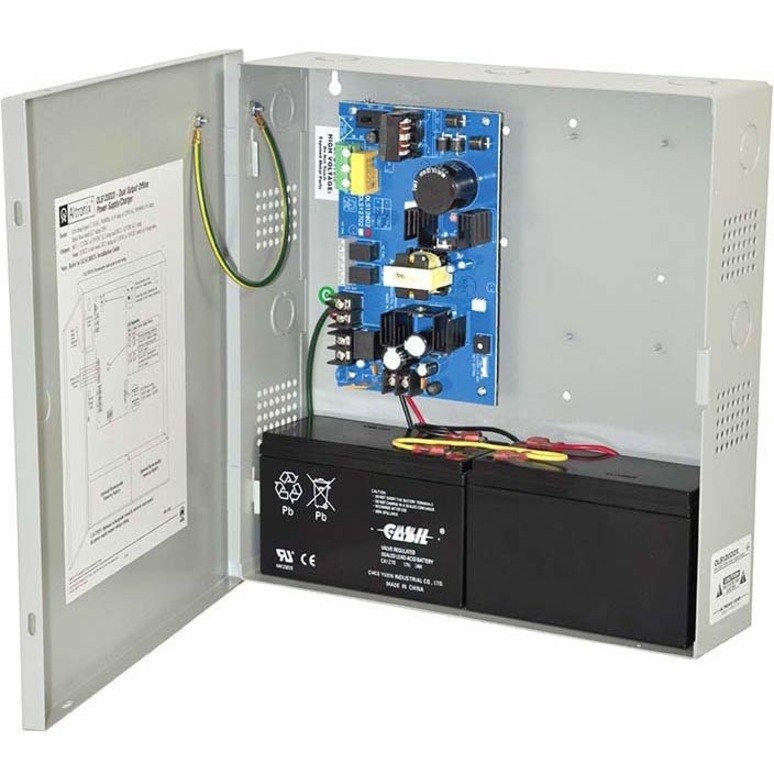

OLS120D2X dual output power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input to a 12VDC/24VDC output and a 12VDC fixed output (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Packaged Quantity
- 1
- Product Type
- Proprietary Power Supply
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Protection Type
- Short Circuit
- Thermal Overload
- Power Description
- Input Voltage Type
- AC
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 12 V DC
- 24 V DC
- Output Voltage Detail
- 12 V DC @ 3 A
- 12 V DC @ 1 A
- 24 V DC @ 3 A
- Input Current
- 950 mA @ 120V
- 600 mA @ 230V
- Output Current
- 3 A
- 1 A
- Controls/Indicators
- Status Indicators
- AC input and DC output LED indicators
- Interfaces/Ports
- Plug/Connector
- On/Off Switch
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 13.5"
- Width
- 13"
- Depth
- 3.3"
- Weight (Approximate)
- 7.40 lb
- Miscellaneous
- Country of Origin
- United States
- NDAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
