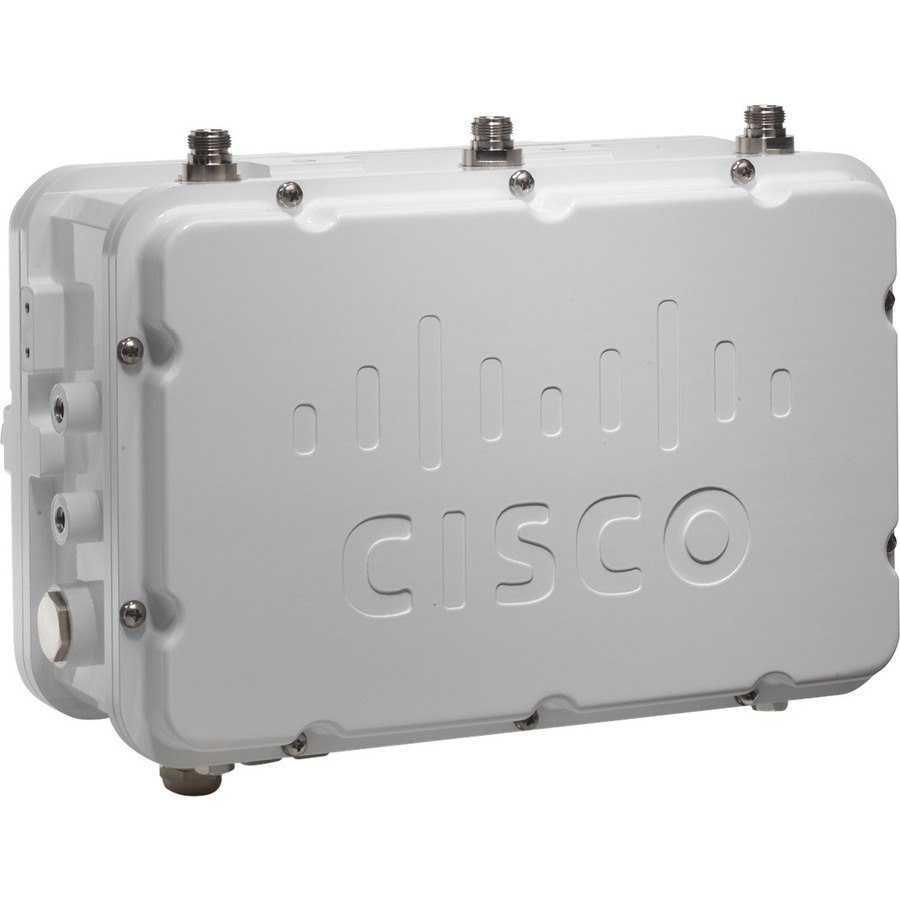

Cisco Aironet 1524 IEEE 802.11a/b/g 54 Mbit/s Wireless Access Point

  • Part: 1574790
  • Model: AIRLAP1524SBNK9-RF
$2,440.00

Availability

Out of Stock

Wireless networks enable people, devices, and applications to stay continually connected with applications and information. The Cisco® wireless mesh network extends wireless access over large, metro-scale areas, extending into areas where wiring is impractical or cost-prohibitive. The wireless mesh can be easily deployed and maintained with zero-touch configuration deployment and self-healing capacity. The Cisco Outdoor Wireless Mesh Solution is a component of the Cisco Unified Wireless Network, delivering a robust wireless network with maximum capacity and uptime.

  • General Information
    • Manufacturer
    • Cisco Systems, Inc
    • Manufacturer Website Address
    • http://www.cisco.com
    • Brand Name
    • Cisco
    • Product Line
    • Aironet
    • Product Series
    • 1520
    • Product Condition
    • Refurbished
    • Product Type
    • Wireless Access Point
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Wireless LAN Standard
    • IEEE 802.11a/b/g
    • ISM Band
    • Yes
    • UNII Band
    • Yes
    • ISM Minimum Frequency
    • 2.40 GHz
    • ISM Maximum Frequency
    • 2.47 GHz
    • UNII Minimum Frequency
    • 5.73 GHz
    • UNII Maximum Frequency
    • 5.85 GHz
    • Wireless Transmission Speed
    • 54 Mbit/s
    • Wireless Security
      • AES
      • TLIP
      • WPA2
      • WPA
      • EAP-PEAP
      • EAP-TLS
      • EAP-TTLS
      • LEAP
  • Interfaces/Ports
    • Ethernet Technology
    • Ethernet
    • Fast Ethernet
    • Gigabit Ethernet
    • Network (RJ-11)
    • No
    • VGA
    • No
    • HDMI
    • No
    • Audio Line Out
    • No
    • Serial Port
    • No
    • USB
    • No
    • Powerline
    • No
  • Management & Protocols
    • Management
    • Cisco Wireless Control System (WCS)
  • Power Description
    • Input Voltage
    • 12 V DC
    • 120 V AC
    • 230 V AC
  • Physical Characteristics
    • Form Factor
    • Pole-mountable
    • Height
    • 6.4"
    • Width
    • 12"
    • Depth
    • 7.8"
    • Weight (Approximate)
    • 18 lb
  • Miscellaneous
    • Certifications & Standards
    • Safety:

      • UL 60950
      • CAN/CSA-C22.2 No. 60950
      • IEC 60950
      • EN 60950

      Immunity:

      • EN61000-4-5 Level 4 AC Surge Immunity
      • EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
      • EN61000-4-3 Level 4 EMC Field Immunity
      • EN61000-4-2 Level 4 ESD Immunity
      • EN60950 Overvoltage Category IV

      Radio Approvals:

      • FCC Part 15.247, 90.210
      • FCC Bulletin OET-65C
      • RSS-210
      • RSS-102
      • AS/NZS 4268.2003
      • EN 300.328
      • EN 301.893

      EMI and Susceptibility:

      • FCC part 15.107, 15.109
      • ICES-003
      IEEE Standards:
      • 802.11a
      • 802.11b
      • 802.11g
      • 802.11i
      • 802.1X
