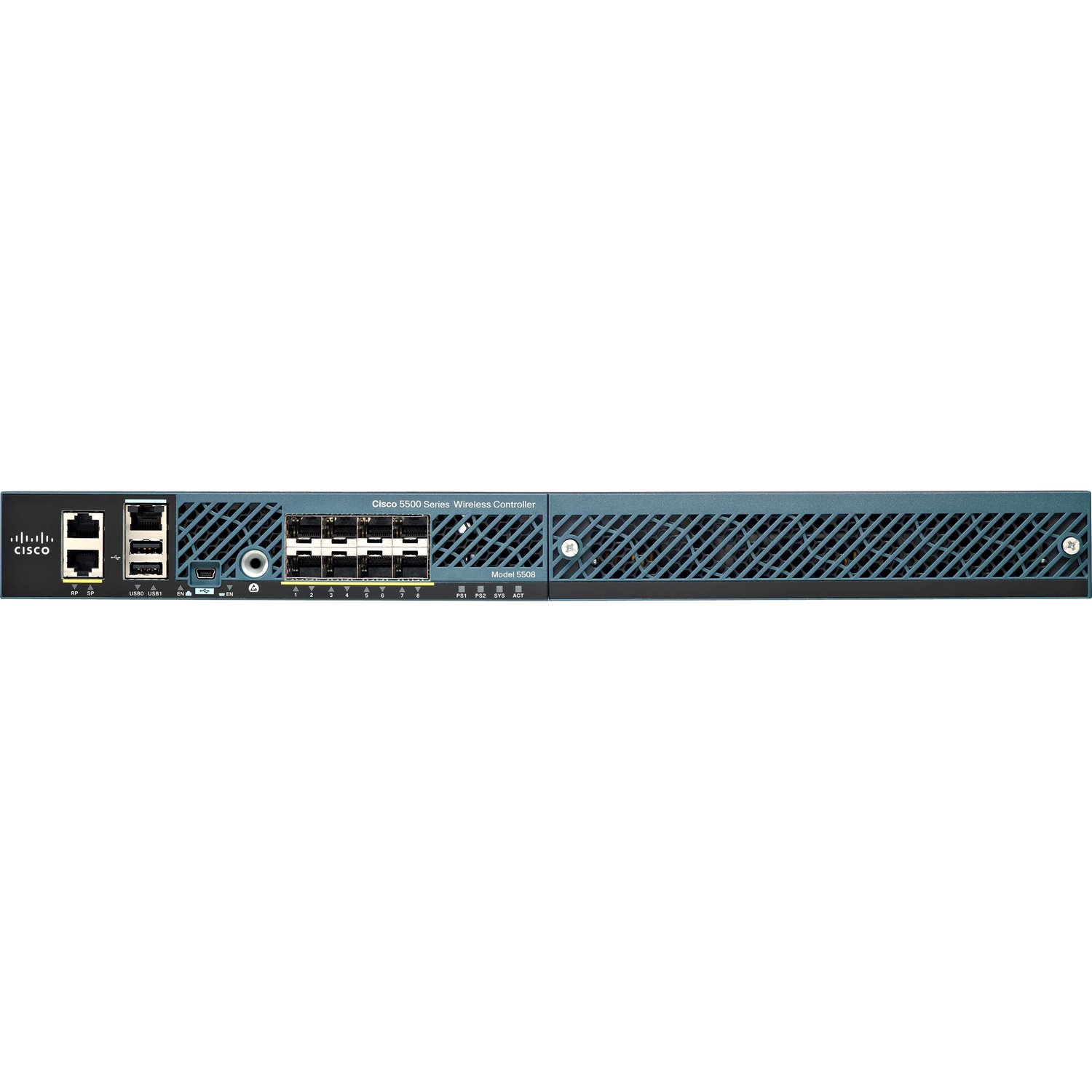

The Cisco® 5500 Series Wireless Controller, shown in Figure 1, is a highly scalable and flexible platform that enables systemwide services for mission-critical wireless networking in medium-sized to large enterprises and campus environments. Designed for 802.11n performance and maximum scalability, the 5500 Series offers enhanced uptime with:
- RF visibility and protection
- The ability to simultaneously manage up to 500 access points
- Superior performance for reliable streaming video and toll quality voice
- Improved fault recovery for a consistent mobility experience in the most demanding environments
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Aironet
- Product Series
- 5500
- Product Condition
- Refurbished
- Product Type
- Wireless LAN Controller
- Warranty
- Limited Warranty
- 90 Day
- Technical Information
- ISM Band
- No
- UNII Band
- No
- Wireless Security
- AES
- TKIP
- SSH
- RADIUS
- Features
- Quality of Service (QoS)
- Interfaces/Ports
- Ethernet Technology
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 8
- Network (RJ-11)
- No
- PoE (RJ-45) Port
- No
- VGA
- No
- HDMI
- No
- Audio Line Out
- No
- Serial Port
- No
- USB
- Yes
- Powerline
- No
- Management Port
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Management & Protocols
- Management
- Web-Based Configuration
- Command-Line Interface
- Telnet
- SNMP v1,2c,3
- MIB
- MIB II
- VLAN
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.8"
- Width
- 21.2"
- Depth
- 17.3"
- Weight (Approximate)
- 20 lb
- Miscellaneous
- Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.11i
- IEEE 802.1x
- IEEE 802.11e
- IEEE 802.1Q
- IEEE 802.1AX
- UL 60950-1:2003
- EN 60950:2000
- FCC Part 15.107
- ICES-003
- VCCI EN 55022 EN 55024
