- General Information
- Manufacturer
- GeoVision, Inc
- Manufacturer Website Address
- http://www.geovision.com.tw
- Brand Name
- GeoVision
- Product Type
- PoE Extender

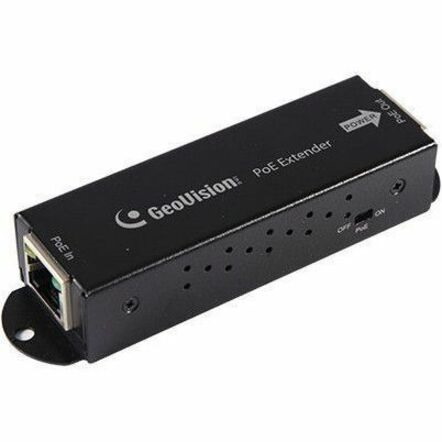

GV-POEX0100 is a single-port, 10/100 PoE extender that can extend the distance between a PoE switch and a GV-IP Camera by 100 m (328.08 ft) for every extender installed. They can be serially connected, with no additional power supply, to transmit power and data to a GV-IP Camera as far as up to 600 meters (1,968.5 ft) away from a PoE switch.
- Interfaces/Ports
- Input Ports
- 1 x RJ-45
- Output Ports
- 1 x RJ-45
- Physical Characteristics
- Height
- 0.8"
- Width
- 1.1"
- Length
- 4"
- Weight (Approximate)
- 3.07 oz
- Miscellaneous
- Package Contents
- GV-POEX0100 PoE Extender
- 2 x Screw
- 2 x Screw anchor
- GV-POEX0100 Installation Guide
- Compatibility
GeoVision IP Cameras:
- GV-POE0801 / 0811
- GV-POE1601 / 1611
- GV-POE2401 / 2411
- GV-POE0400
- GV-POE0800
- GV-POE0810
- GV-PA191/481/482/901
- GV-BX2510-E / 5310-E
- GV-FE3403 / 5303
- GV-VD2540-E / 5340-E
- GV-SD220 / 220-S
- GV-POE0801 / 1601 / 2401
- GV-POE0811 / 1611 / 2411
- Certifications & Standards
- IEEE 802.3af
- IEEE 802.3at
- CE
- FCC Class A
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- Taiwan
