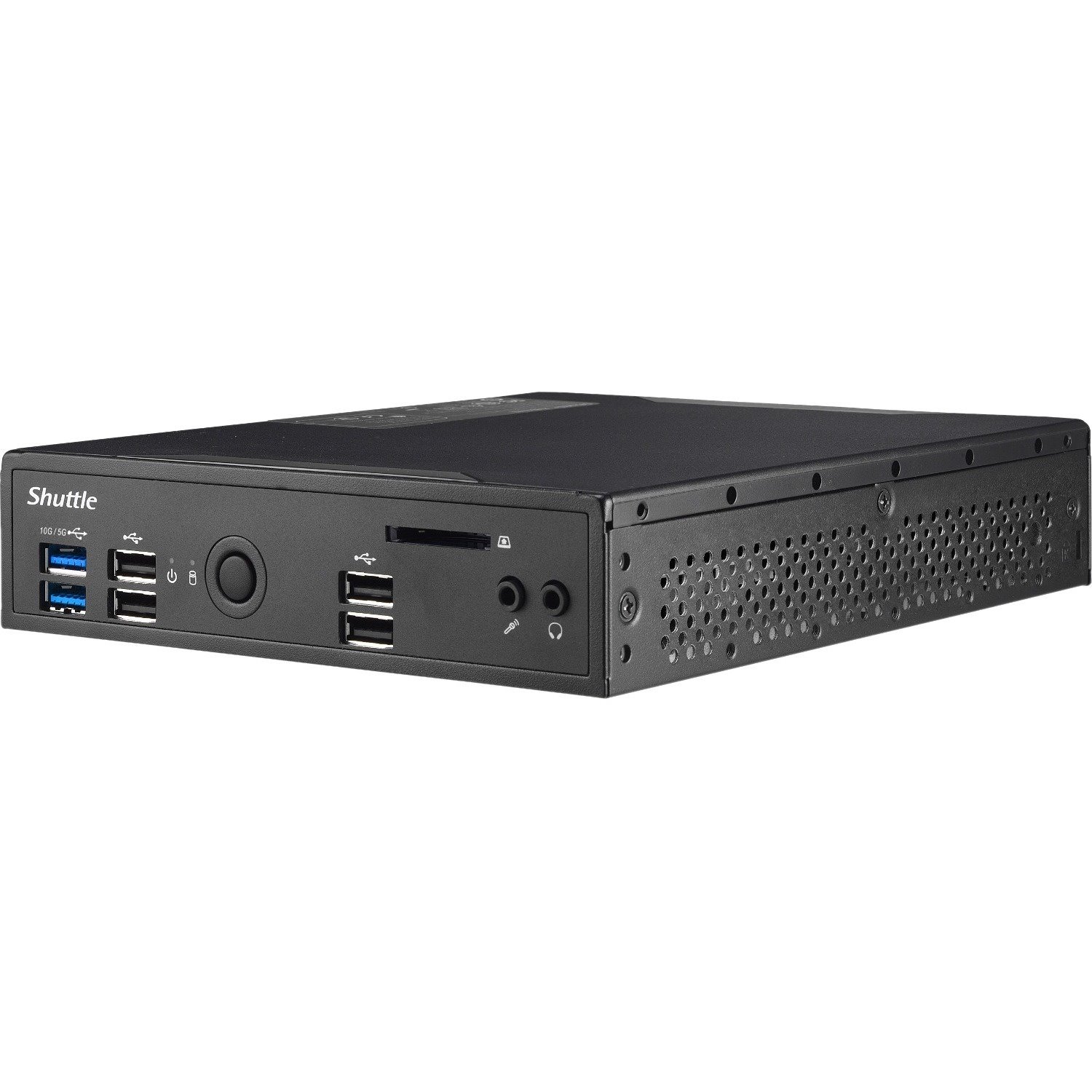

FANLESS SLIMPC WITH A COMET-LAKE-U PROCESSOR IN INDUSTRIAL DESIGN
The DS20U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel "Comet-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS20U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.
- General Information
- Manufacturer
- Shuttle, Inc
- Manufacturer Website Address
- http://www.us.shuttle.com
- Brand Name
- Shuttle
- Product Line
- XPC slim
- Product Type
- Barebone System
- Processor
- Number of Processors Supported
- 1
- Processor Socket
- Socket BGA-1528
- Processor Type
- Celeron
- Processor Model
- 5205U
- Processor Core
- Dual-core (2 Core)
- Processor Speed
- 1.90 GHz
- Chipset
- Chipset Manufacturer
- Intel
- Memory
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-3200/PC4-25600
- Total Number of Memory Slots
- 2
- Storage
- Supported Storage Drive Interfaces
- Serial ATA III
- M.2
- Controllers
- Controller Type
- Serial ATA/600
- Display & Graphics
- Graphics Controller Model
- UHD Graphics
- Graphics Memory Technology
- DDR4 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 9
- Number of USB 3.2 Gen 1 Ports
- 4
- Number of Onboard USB 2.0 Ports
- 1
- Number of VGA Ports
- 1
- Operating System
- Operating System Supported
- Windows 10 x64
- Windows 11 x64
- Linux
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 65 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Slim PC
- Height
- 1.6"
- Width
- 6.5"
- Depth
- 7.9"
- Weight (Approximate)
- 3.31 lb
- Miscellaneous
- Energy Star
- Yes
